This chapter describes the day-to-day views used at the line. Required role: Operator (Scoreboard: any signed-in user).

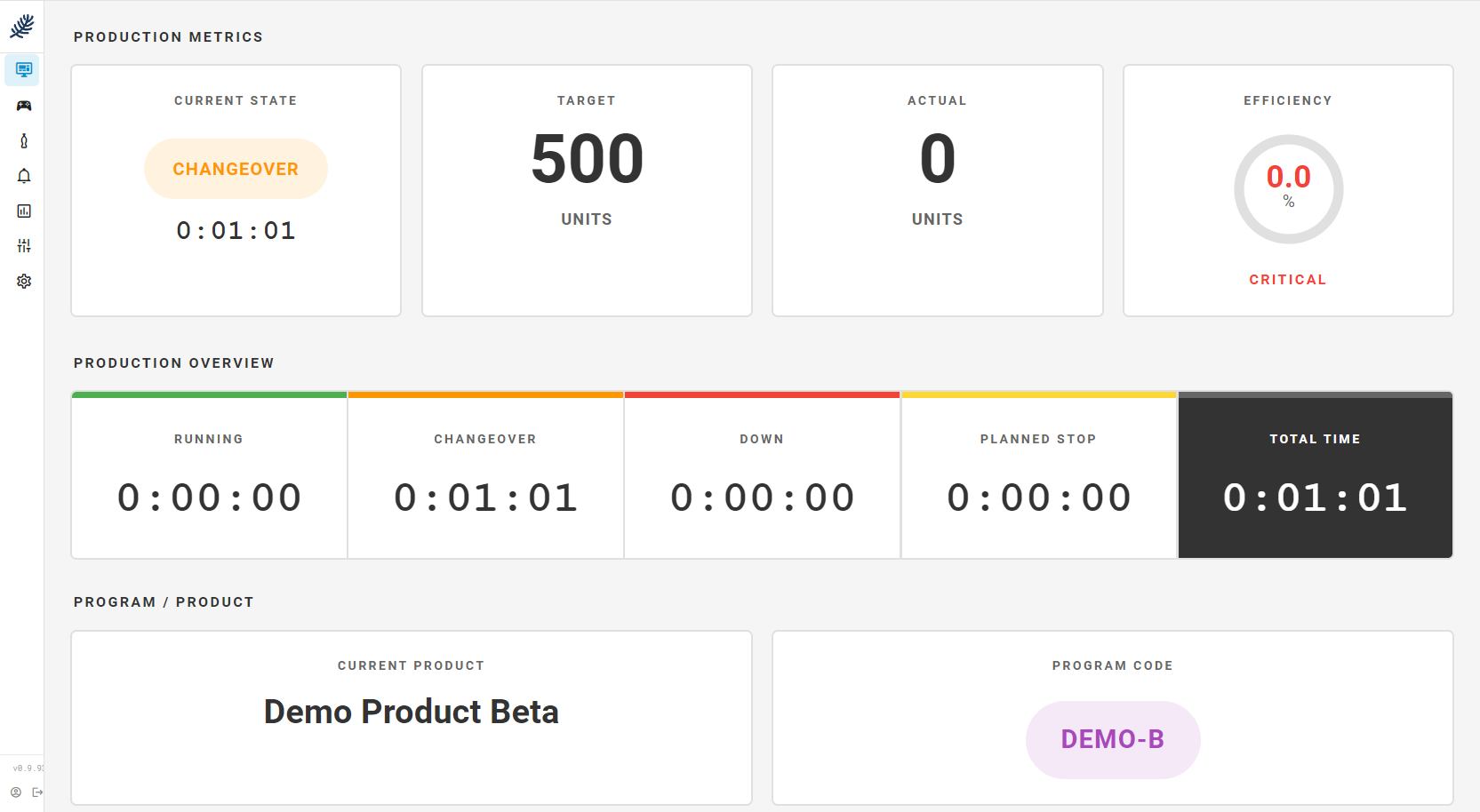

The Scoreboard is a large-format live display intended for wall monitors. It shows:

• Current State with state color and duration,
• Current Product and Program Code,
• Production Metrics: Target, Actual, Efficiency,
• Production Overview of the current shift: time in Running, Changeover, Down, Planned Stop, and Total Time.

The Scoreboard requires no interaction and refreshes automatically. A Basic account (no password) can be used to leave it permanently open on a wall display.

The Production Timeline is the operator's main working view. It combines:

• State Controls: buttons to drive the production run (below),
• Shift Info: current state, state duration, program/product, Units In, Units Out, Efficiency, Target/Run #,
• Shift Timeline: a horizontal timeline of all state segments; use Zoom to Fit / Reset Zoom or enable Auto-zoom to fit data,
• Statistics: per state: occurrences, total time, average duration, % of shift,
• Stage table: per process stage: stage #, name, total units, throughput.

1. Press Start Changeover. The line state changes to Changeover (purple).
2. Select the Product (mandatory): the program is determined by the product.
3. Enter the Target Quantity (leave blank for an unlimited run).
4. Confirm. The production run is created.

As soon as the line starts counting parts [PBX], the state changes automatically to Running; no further operator action is required.

The state is maintained automatically from the counter signals (chapter 2.3.2):

• If a stage counter stalls beyond its timeout, the state becomes Down and a downtime reason is requested (section 5.4).
• If throughput drops without a full stop (single stations stall), the state becomes Running Slow.
• For breaks or planned interventions, use Planned Stop; press Resume to continue. Planned stops do not reduce Availability.

There are two ways to end a run:

• Drain Line: the input stage stops while the rest of the line runs empty (state Draining, blue). When the output counter times out, the run ends automatically.
• Stop Production: ends the run immediately (confirmation required).

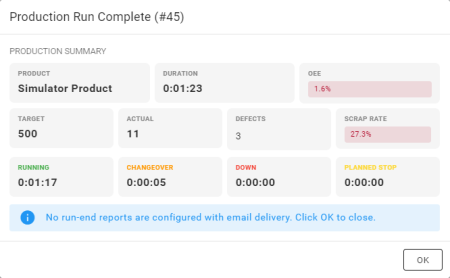

When the run ends, the Production Run Complete dialog shows the run summary: Target, Actual, Defects and Scrap Rate.

The defect parts are calculated as input parts - output parts after the line was drained or production was stopped.

Actions on run-end:

• Correct the defect quantity here if the automatic defect count does not match reality (e.g. manually sorted-out parts). The OEE Quality factor is recalculated with the corrected value.
• If run-end reports with e-mail delivery are configured (chapter 8), the dialog lists the reports and recipients. Choose Send Email to dispatch them, or OK, do not send email to skip.

The finished run is then available in all analysis views (chapter 6).

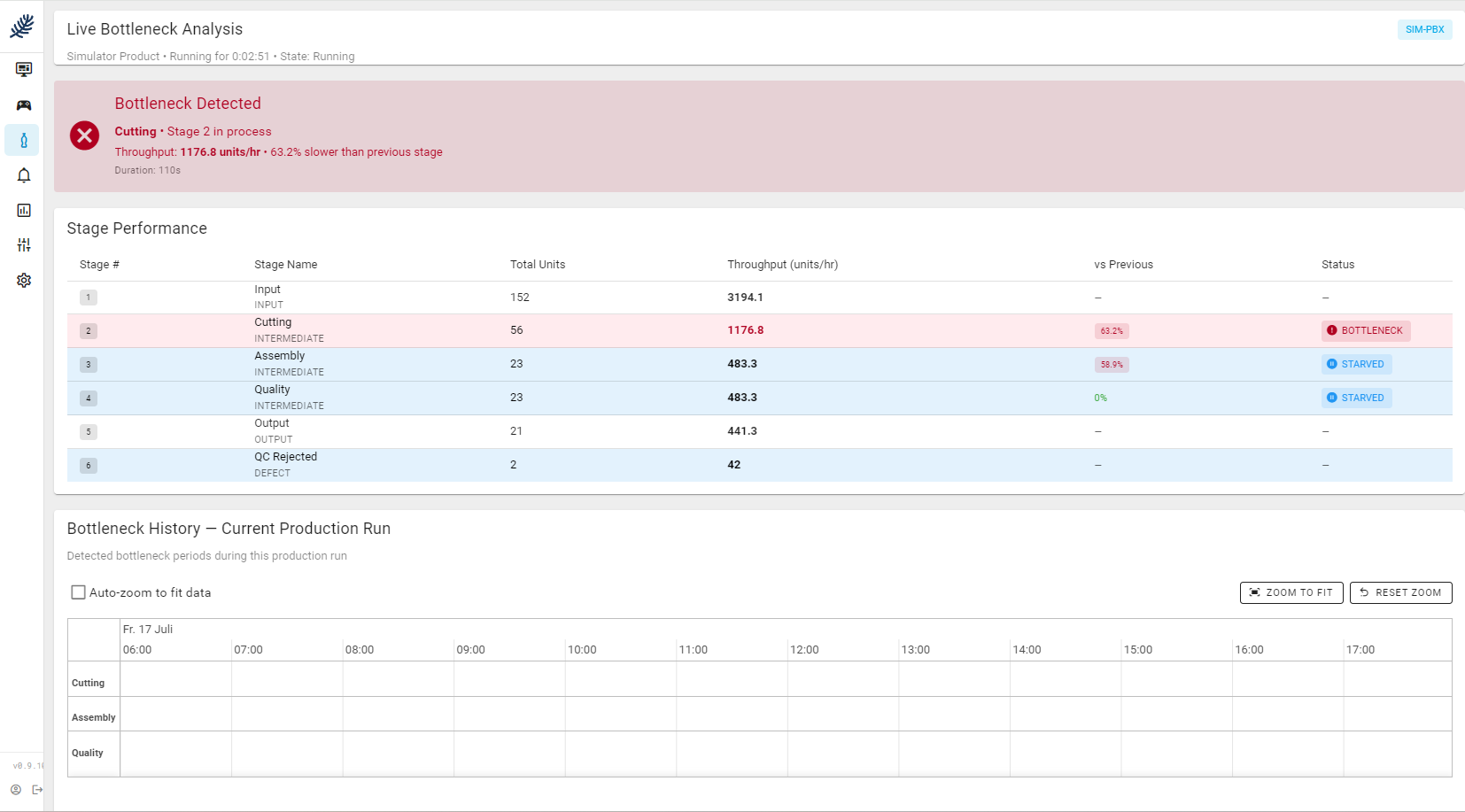

The Bottleneck view compares the live throughput of all intermediate process stages of the current run and identifies the stage that limits the line.

How detection works: a stage is flagged as a bottleneck if its throughput is more than a configured percentage slower than the fastest stage, and this condition persists longer than a configured minimum duration. Both thresholds are set per program (chapter 7.1). Analysis begins after a warm-up of at least 60 seconds of running time.

Each stage is shown with total units, throughput (units/h), deviation vs. the previous stage, and a status:

The lower part of the view lists the bottleneck periods detected during the current run. Historical analysis across runs is available under Analysis → Bottleneck History (chapter 6.2).

Every Down period must be justified. When a stop is detected, the timeline view shows a Downtime Occurred dialog (“Line went Down at …”):

1. Choose whether the stop was Planned or Unplanned.
2. Select the Category and then the Reason (both mandatory; the catalogue is configured under Line Config → Downtime, chapter 7.7).
3. Optionally add Notes.
4. Press Submit Reason.

If a stop is not classified immediately, it remains pending and can be assigned or corrected later in Analysis → OEE History (chapter 6.1). Complete reason data is what makes the Downtime Pareto (chapter 6.4) meaningful.
