2.1 Connections overview

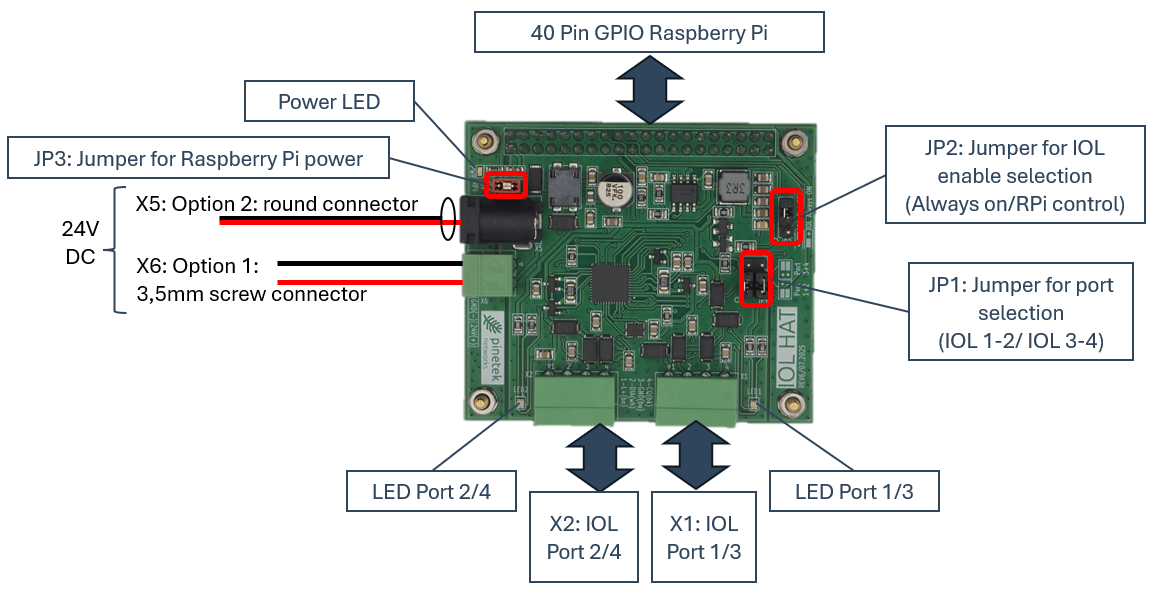

The following image provides an overview on the available connections and interfaces:
All logic signals (SPI, interrupts) on the 40-pin GPIO operate on 3V3 logic levels.
