After ensuring that your device is properly connected, you can add the device specific node to Node-RED.

Node-RED is an open-source visual programming tool used for wiring together hardware devices, APIs, and online services. It provides a browser-based flow editor, which allows users to create flows using nodes (blocks) and connect them together to define the logic of their application or automation task. Each node represents a function or service, and they can be dragged and dropped onto the editor canvas and connected together to create a flow. Node-RED is pre-installed on the Pinebox.

To integrate the IO-Link device data in Node-RED, a device specific node needs to be exported from the web interface and later imported into Node-RED. In this example, we are using the process data from our distance sensor.

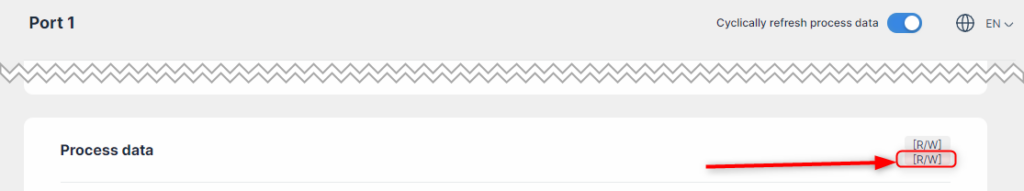

In the “Process Data” section of the port sub-page of the web interface, select the lower link (red background) labeled “[R/W] “. The upper (grey background) link is used for raw JSON access. This link is usually hidden and can be enabled with a switch at the bottom of the page.

A new tab in your browser will open. The box contains the text description of the node. No worries: You do not need to understand this section.

Click on the “Copy to clipboard” button to copy the content of the box (you will need it in the Node-RED environment).

Now switch to the Node-RED Flows page by clicking on “Node-RED Flows” menu item:

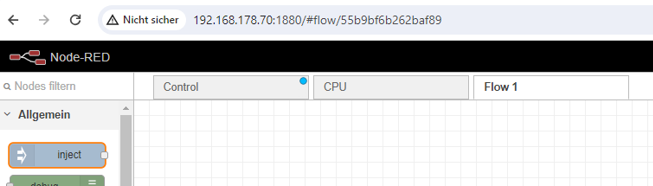

The Node-RED Flow editor opens in a new tab of your browser. The Node-RED environment is available under the same IP-Address as the web interface, only on port 1880:

Import the flow from the clipboard by selecting “Import” from the top-right menu:

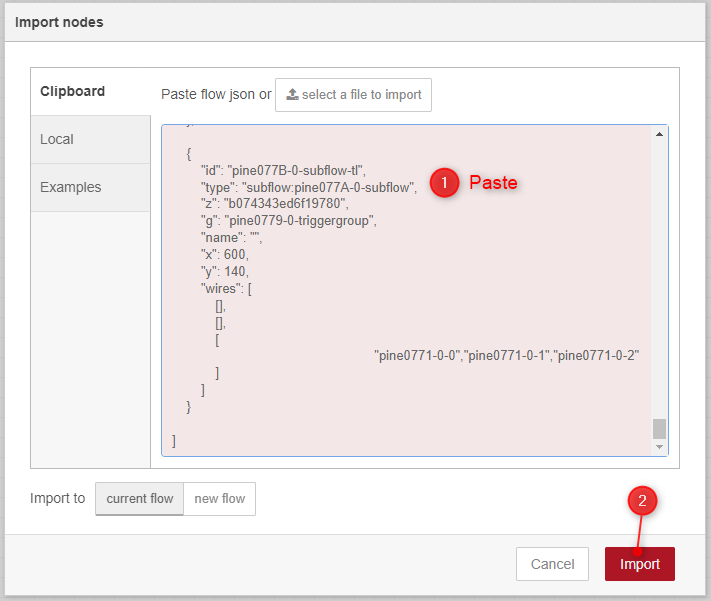

Select the tab “Flow1” and paste the text from the clipboard (1) (Ctrl-v or right-click and select “paste”)and press “Import” (2):

Place the blocks on the canvas. The dimensions of the blocks are adjusted after placing.
